CJ5E-A

CJ5E-A EMU Train was born in June 2020, belongs to the 中车长春城际动车组 series, 2M2T in marshalling, the hole length is 104.1 m, has a maximum design speed of 160 km/h, and 180 km/h in the experiment

2020年07月，全型头型的CJ5E-A动车组下线，并于07月08日抵达铁道科学院环形铁道进行试验。采用CRH3A的头型，增加了独立的司机室门，乘客门调整为三扇双开门，更加适用于城际和市域铁路快速乘降的需求。该车可选配是否加装动力电池，即可作为普通列车使用，也可以选配电池成为混动。

Detail of its series

Photo by 魔光老徐

Appearance

Cold resistance

≤-40℃

Sand resistance

＞11级风+沙尘

Technical Parameter

Speed

160 km/h

Design speed

180 km/h

Maximum experimental speed

Appearance

2M2T

Marshalling

104.1 m

Total length

3300 mm

Width

3900 mm

Height of Car Body

27050 mm

Distance between center of couplers of head cars

26550 mm

Body length of head cars

25000 mm

Center distance of coupler of middle cars

24500 mm

Body length of middle cars

17 t

Max Axle load

Power

YJ257A × 8

Motor model

345 kw

Motor power

2760 kw

Installed power

2560 kw

Power at wheel rim

Performance

-40~40 ℃

Operating temperature

Control

CTCS2-200 LKJ2000

Train control systems

DSA200

Pantograph model

22.5 ~ 29 kV

Normal operating voltage

Service facilities

Air
Conditioned

AC 220v

Electrical outlet

USB

Charging port

Rest rooms

Toilets

Barrier free

Braille and Wheelchair area

Suitable for infants

Infant care facility

Frmation and seat arrangement

Cars

184

Seat Number

Car 01 / Mc ZE (38)

Car 02 / Tp ZE (46+4)

Car 03 / Tp ZE (46+10)

Car 04 / Mc ZE (40)

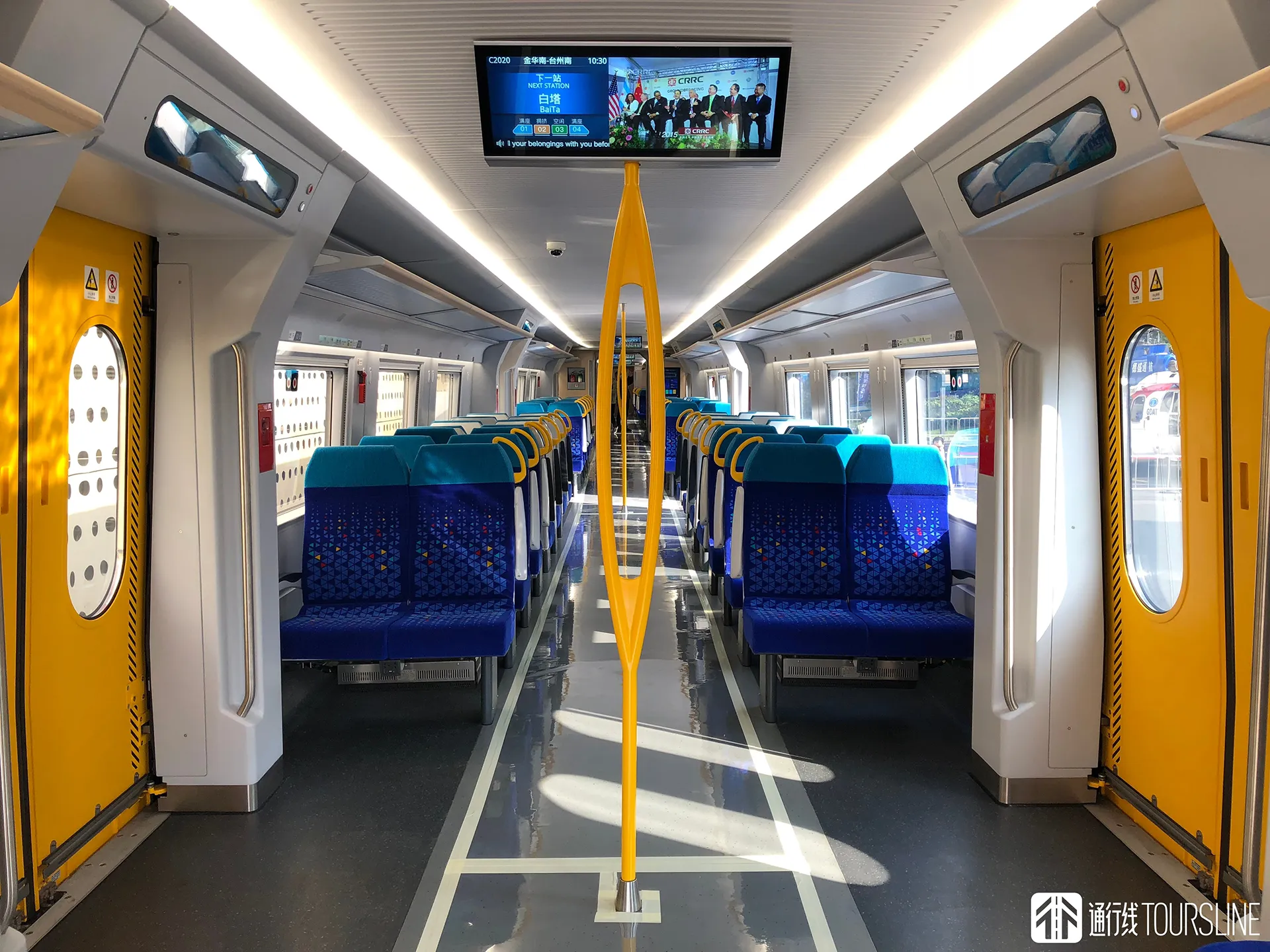

Seat type and capacity

170

Second-class seats
with unadjustable backrest

china-emu.cn

Folding seats
or Simple seats

china-emu.cn

The orientation of the seats cannot be changed

Manufacturer and batch

Manufacture by CRRC Changchun

CJ5E-A-0509 (1 in all)

Beginning of delivery in 2020-07

The schematic diagram is automatically generated and only for reference.

Upgraded at 2022-10-01

^* M: Motor Car; Mc: Motor car with driver's cab; Mp: Motor car with driver's pantograph; T: Trailer Car; Tc: Trailer car with driver's cab; Tp: Trailer car with driver's pantograph
^* ZE: Second-class car; ZY: First-class car; ZS: Business Car; ZET: Second-class and Premier-class car; ZES: Second-class and business car; ZYT: First-class and Premier-class car; ZYS: First-class and business car; ZEC: Second-class car with dining room; WR: First-class sleeper car; WE: Second-class sleeper car; WY: First-class sleeper car; WG: Luxury sleeper car; WRC: First-class sleeper car with dining room; CA：Dining car
